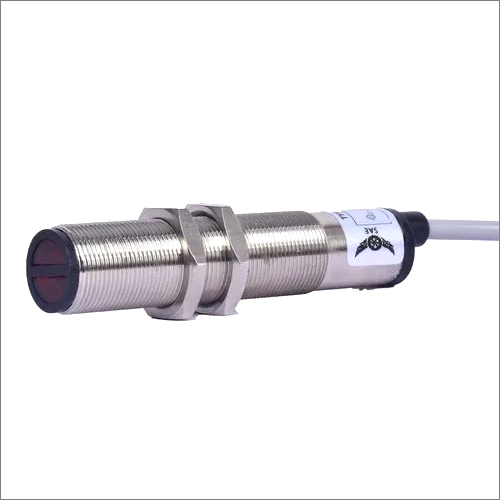

Optical Sensor Through Beam Sensor
Product Details:
- Product Type Optical Sensor
- Material Metal
- Function Electric
- Usage Industrial, Electrical
- Voltage 30 Volt (v)
- Warranty Yes
- Click to View more
Optical Sensor Through Beam Sensor Price And Quantity
- 850 INR/Unit
- 50 Unit
Optical Sensor Through Beam Sensor Product Specifications
- Optical Sensor
- 30 Volt (v)
- Electric
- Metal
- Yes
- Industrial, Electrical
Optical Sensor Through Beam Sensor Trade Information
- Cash Advance (CA)
- 1000 Unit Per Day
- 5 Days
- All India
Product Description
We are bringing forth the best Optical Sensor Through Beam Sensor, which is engineered for detecting and counting parts, as well as detecting the objects' edges, and monitoring passages in systems. The receiver and emitter are perfectly housed in separate housing as per the through-beam mode. The Optical Sensor Through Beam Sensor is manufactured using the highest quality NC plated brass tube and advanced sensing mechanism that guarantee its excellent sensing performance with frequency of 45 to 65Hz, sensing distance of 3 meter, and temperature of -25 to 55 oC.
Specification:
|
Supply Voltage |
10-30VDC |
|
Switching Distance Sn mm |
0-10 mtr |
|
Load Current |
250mA/400mA |
|
Switching Frequency |
100Hz |
|
Protection |
IP67 |
|
Operating Temperature |
-25oC to +70oC |
|
Short Circuit Protection |
YES |
|
Cable |
2 mtr. 3 core,PVC |
|
DC 3 WIRE 10-30V NPN NO |
NPN NO NF/F |
|
DC 3 WIRE 10-30V PNP NO |
PNP NO NF/F |
